Right-angled triangle trigonometry - faded worked examples

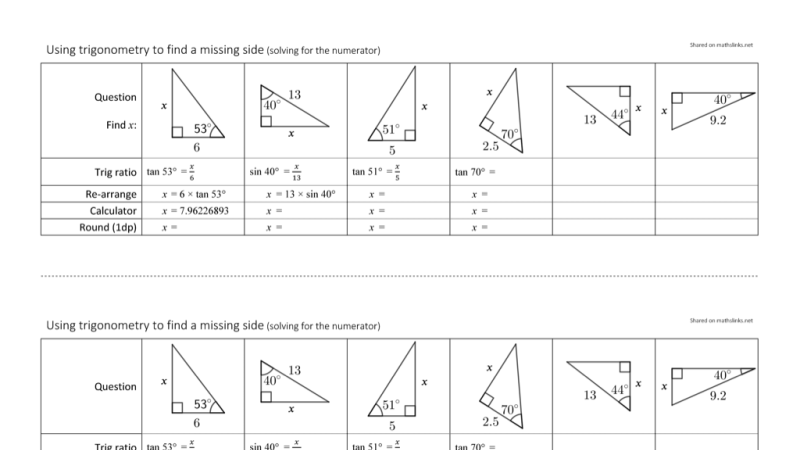

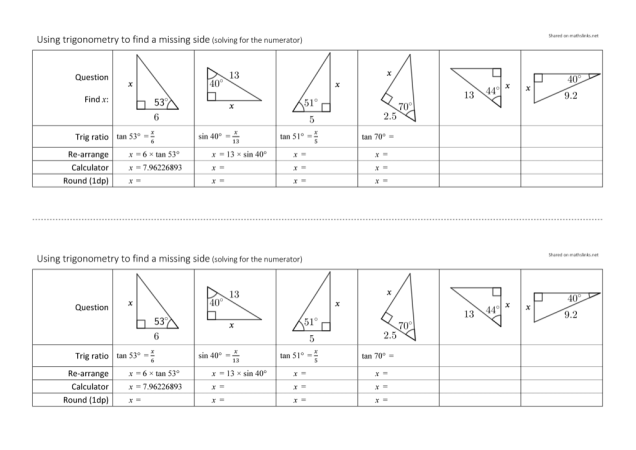

Preview of Right-angled triangle trigonometry - faded worked examples

Resource Type: Worked examples, Faded worked examples

Based on the Cognitive Load Theory idea of faded worked examples. These three sheets provide faded worked examples for

  • Using trigonometry to find a missing side (solving for the numerator)
  • Using trigonometry to find a missing side (solving for the denominator)
  • Using trigonometry to find an angle

15 May 2022 Edit: 8 June 2022

Shared by     Sydney, Australia

This resource has been shared under a Creative Commons license:
Attribution-Noncommercial-Share Alike by-nc-sa

  Sign in to download
Short Address
(Twitter) Facebook Pinterest Yammer
Add to List
Diigo Pinboard Google Bookmarks

Click thumbnails for selected previews.

Preview of
Preview of
Preview of
Preview of

PDF, Word

Members only

Downloads are available to signed in members.  Help

Sign in or Sign up for free

Topics:
Measurement, Trigonometry
Resource Type:
Worked examples, Faded worked examples
The Australian Curriculum
Measurement and Geometry, Pythagoras and trigonometry, ACMMG224 Year 9 Apply trigonometry to solve right-angled triangle problems
The Australian Curriculum Version 9.0 New
Year 9, Measurement Year 9, AC9M9M03 solve spatial problems, applying angle properties, scale, similarity, Pythagoras’ theorem a
Australian Curriculum / General Mathematics
Unit 2 Topic 2 Applications of trigonometry, Applications of trigonometry, ACMGM034 review the use of the trigonometric ratios to find the length of an unknown side or t…
NSW Mathematics K-10 Syllabus
Measurement and Geometry, MA5.1-10MG Right-Angled Triangles (Trigonometry), MA5.2-13MG Right-Angled Triangles (Trigonometry)
NSW Curriculum New
Measurement and space, Pythagoras and trigonometry, MA5-TRG-C-01 Trigonometry A, MA5-TRG-C-02 Trigonometry B
NSW Mathematics Standard Stage 6 Syllabus
Measurement, MS-M6 Non-right-angled Trigonometry
NSW Mathematics Advanced Stage 6 Syllabus
Trigonometric Functions, MA-T1 Trigonometry and Measure of Angles, T1.1 Trigonometry
